| Place of Origin: | Shenzhen ,China |
| نام تجاری: | Top-King |
| گواهی: | ISO9001:2008;RoHS |
| Model Number: | H-8 |
| Minimum Order Quantity: | 500 set |
|---|---|
| قیمت: | Negotiation |
| Packaging Details: | 250 pieces packing together in a 300*250*152 mm carton |
| Delivery Time: | 5-7 working days with PO and deposit |
| Payment Terms: | TT |
| Supply Ability: | 10000 pieces per day |
| Material: | 2.5mm Thickness SPCC | Color: | Black / Silvery |
|---|---|---|---|
| Name: | pipe joint system | Usge: | Adjuster pipe joint connecting |
| Shape: | Cross connecting pipe joint | Head code: | round |
| HS code: | 7307990000 | Weight: | 43 g /pcs |
| Package: | 250 piece per carton | Package carton size: | 360mm*300mm*250mm |
| Diameter: | 28mm | Combination: | Two pieces H-8 fixed with one set M6*25 bolt&nut to be HJ-6 |
| برجسته: | flexible pipe joint,metal tube joints,metal tube joints |
||

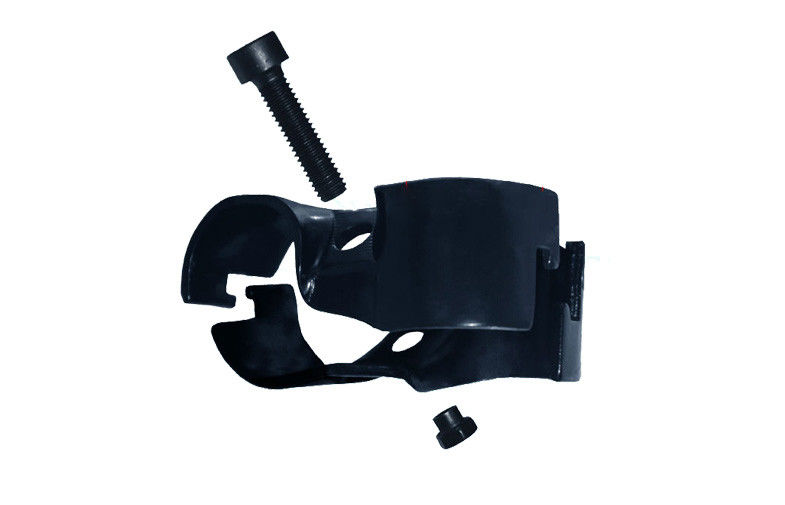

Flexible Assembly Line Metal Tube Joints Cross Connecting Pipe Joint System
pipes and joints system is both versatile and cost effective as all pipes and joints are reusable,
enabling constructions to be easily reconfigured or products recycled to create equipment to
suit different applications.
* Production base:Shenzhen Jingji Co., Ltd

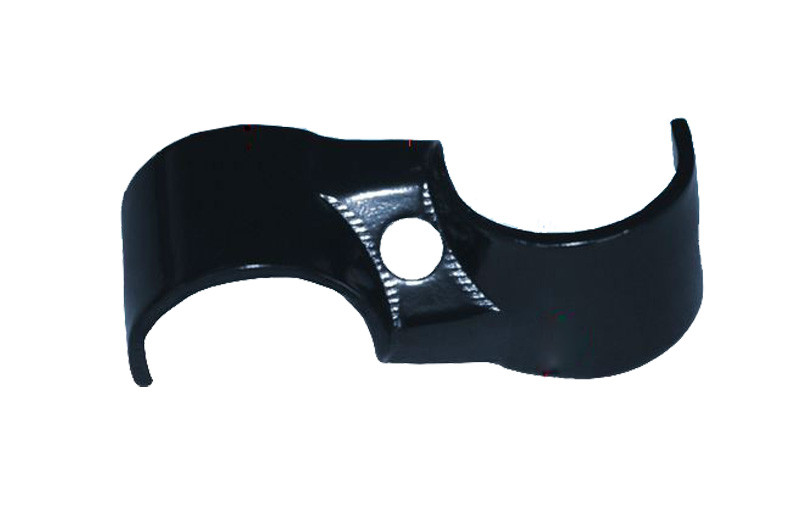

* Model number: H-8
* Brand name: JINGYU
* Term of Trade: EXW / FOB / CIF
|
1. Material: |
2.5mm Thickness SPCC steel |
|
2. Surface treatment : |
Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome plated(Silvery one) |
|
3. production procedure: |
SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis Or Plating |
|

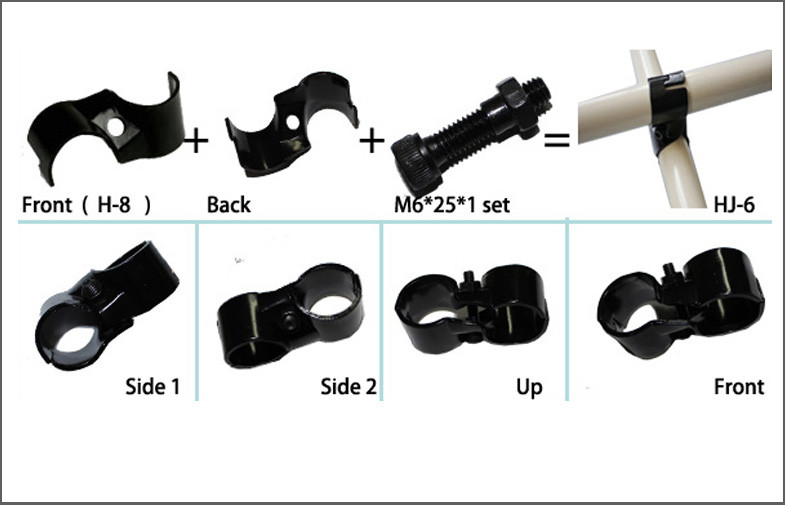

4. Main Combination: |
Two pieces of H-8 pipe joints andone set of M6*25 bolt & nut can be assemble one set of metal pipe joint HJ-6(H-8*2+M6*25*1) |
|
5.Weight |
43g/ pcs |
|
6. Item No. |
H-8 |
Product Description :
1. Manufacturing standard:
Using international materials production under strict Jingji quality control and inspection.
2. Production process:
Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC
material. We emphasize on the functions of each product. Cutting corners in manufacturing
process is not allowed.
3. Design requirements:
The standard is in accordance with the most favorable specification in the industry. Emphasizes
on the safety of people, articles, and equipment prolong the service life.
4. Testing:
In addition to the regular standard gauge testing, a special gauge testing is added for every
process to ensure the functional indices reach the standard.
electrophoresis joint for pipe rack assembly|hardware accessories|metal joint
Flexible lean pipes and joints are safety and durability with the higher reliability.
Shenzhen Jingji Technology Plastic coated pipe is serving the markets by the advantages
of the coated pipe combination.
We will continuously research and develop the accessories which have extended functions.
Currently the joints series have hundreds kinds of products.
And the new pipe rack system aluminum alloy pipe and pipe joints are sale on market.
Application of H-5 and H-6 metal pipe and joints.
Pipe joints
The Metal Joint will be fastened by bolt and nut so that it is easy for you to assemble
or disassemble
Joints offer an easy assembly solution for different structure requirements. Our joints are
available in a wide range of selection to build any complex structure. The metal joints can
easily be fastened by nut and bolt, making the structures easy to assemble and disassemble.
