خانه محصولاتاتصالات لوله های فلزیABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System

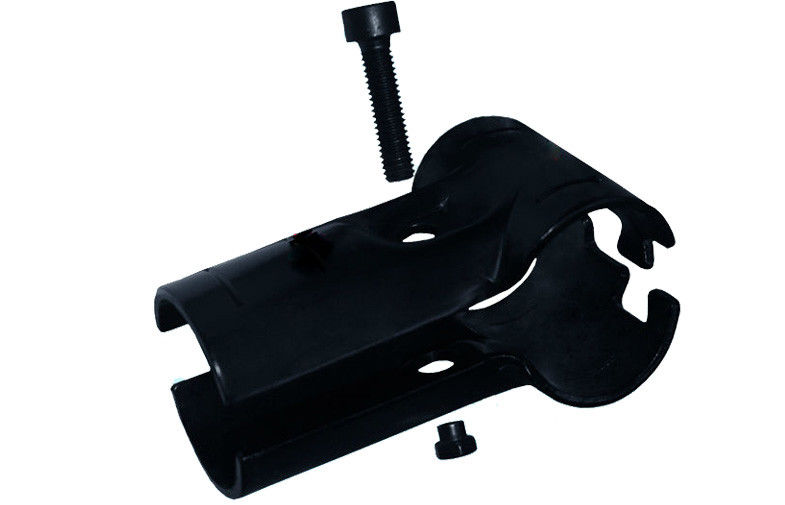

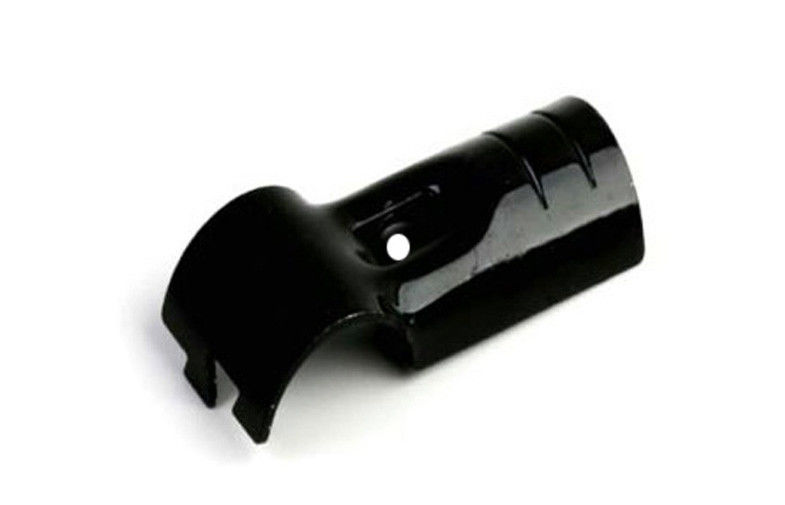

ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System
ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System

ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System

جزئیات محصول:
Place of Origin: Shenzhen,China
نام تجاری: TOP-KING
گواهی: ISO9001:2008;SGS;RoHS
Model Number: H-1
پرداخت:
Minimum Order Quantity: 1000 pieces
قیمت: قابل مذاکره
Packaging Details: 300 pieces packing together in a 300*250*152 mm carton
Delivery Time: 5-7 working days with PO and deposit
Payment Terms: Western Union, T/T
Supply Ability: 10000 pieces per day
اکنون تماس بگیرید
  • اطلاعات تکمیلی
  • توضیحات محصول

اطلاعات تکمیلی
Material: 2.5mm Thickness SPCC Color: Black / Silvery
Name: Metal pipe joint Usge: Connecting ABS coated pipe
Shape: Tee type pipe joint Head code: round
HS code: 7307990000 Weight: 64g/pcs
Package: 300 piece per carton Package carton size: 300mm*250mm*152mm
Diameter: 28mm Combination: two pieces H-1 pipe joints fixed with one set M6*25 bolt&nut
برجسته کردن:

steel pipe joints,metal tube joints

,

metal tube joints

توضیحات محصول

ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System



1. Material:

 2.5mm Thickness SPCC steel

2. Surface treatment :

Surface electrophoresis treatment(Black one),

Zinc/ Nickel /Chrome plated(Silvery one)

3.  production procedure:

SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis Or Plating

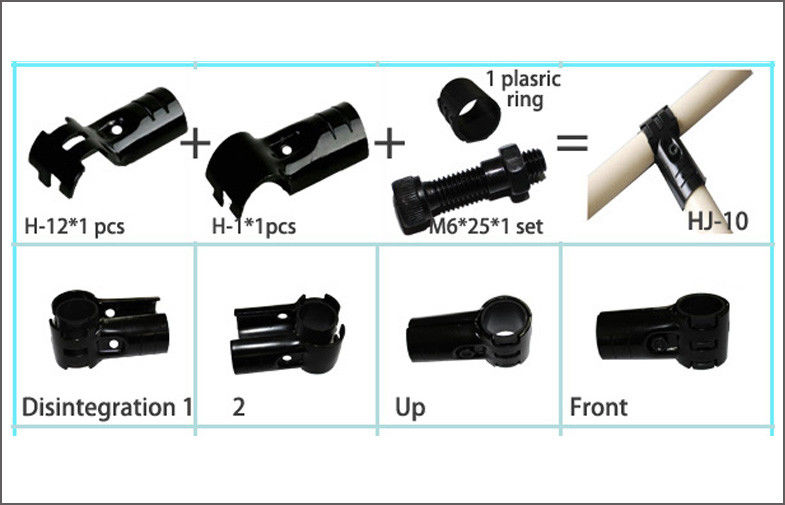

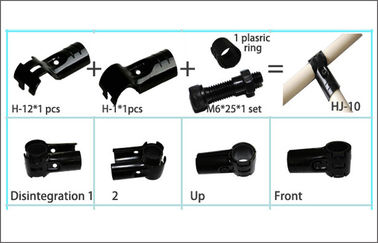

4. Main Combination:

Two pieces of H-1 pipe joints and one set of M6*25 bolt &

nut can be assemble one set of  metal pipe joint HJ-1(H-2*2+M6*25*1)

5.Weight

61g/ pcs

6. Item No.

H-1





Product Description :



1. Manufacturing standard:

Using international materials production under strict Jingji quality control and inspection.

2. Production process:

Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC material.

We emphasize on the functions of each product. Cutting corners in manufacturing process is not allowed.

3. Design requirements:

The standard is in accordance with the most favorable specification in the industry. Emphasizes on the

safety of people, articles, and equipment prolong the service life.

4. Testing:

In addition to the regular standard gauge testing, a special gauge testing is added for every process to

ensure the functional indices reach the standard.





joint manufacturer|Metal Joint workbench producers|storage rack system :


 H-1 Pipe joint s are safety and durability with the higher reliability.

Shenzhen Jingji Technology Plastic coated pipe is serving the markets by the advantages of the

 coated pipe combination. We will continuously research and develop the accessories which have

extended functions. Currently the joints series have hundreds kinds of products.



Metal pipe joint RoHS Test Report

ABS Coated Metal Pipe Joints / Flexible Metal Joint For Racking System 0





برچسب:

flexible pipe joint,steel pipe joints,metal tube joints

steel pipe joints,metal tube joints

metal tube joints
