Place of Origin: | Shenzhen ,China |
نام تجاری: | Top-King |
گواهی: | ISO9001:2008;RoHS |
Model Number: | JJ-2017.5.18 |
Minimum Order Quantity: | None |
---|---|
قیمت: | Negotiation |
Packaging Details: | Normal package ,can arrange per customer's special requirment |
Delivery Time: | The actual lead time according to the quantity |
Payment Terms: | TT |
Supply Ability: | 1000 sets per day |
Name: | Standard Single –Drive Two-Way Knapsack AGV | Size: | L110*W400*H300(mm) |
---|---|---|---|
Encode: | JC017050001 | Gradeability: | 3-5° |
Working mode: | 24 hours | Design life: | >10 years |
Alarm: | Sound-light alarm | Drive Mode: | Differential drive |
Drive Power: | DC24V | Ontology model: | Ordinary type |
برجسته: | heavy duty workbenches,industrial workbench,industrial workbench |

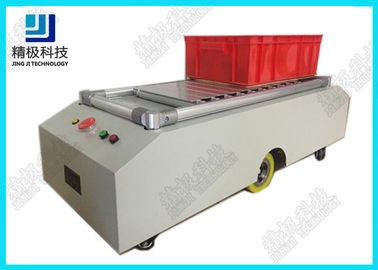

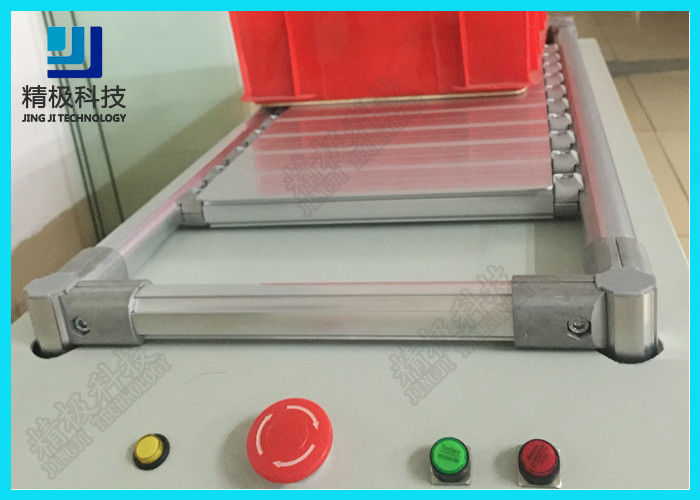

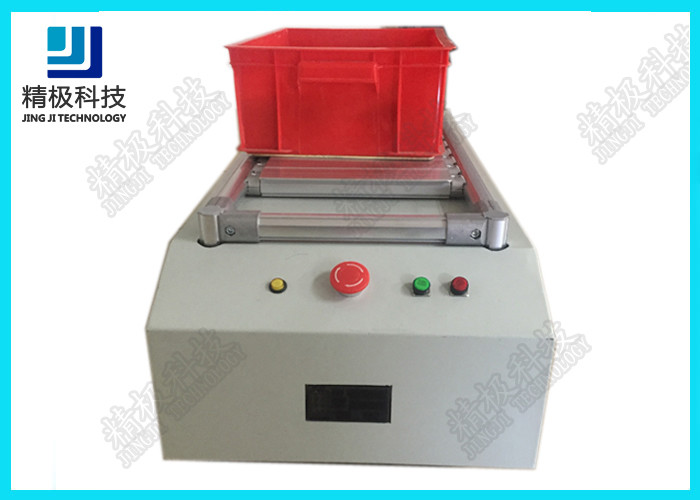

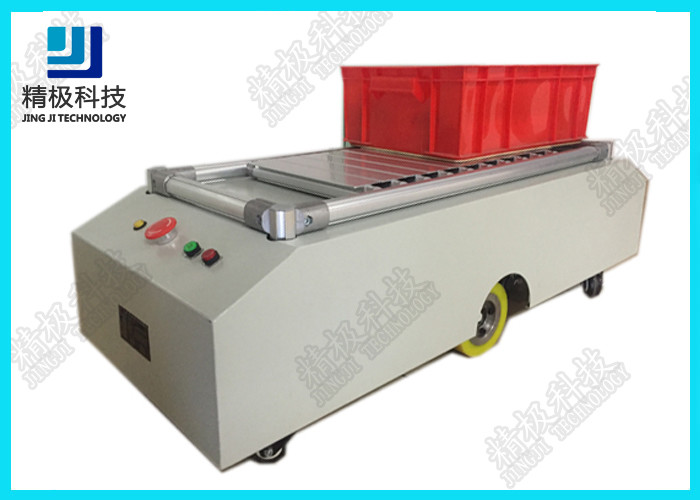

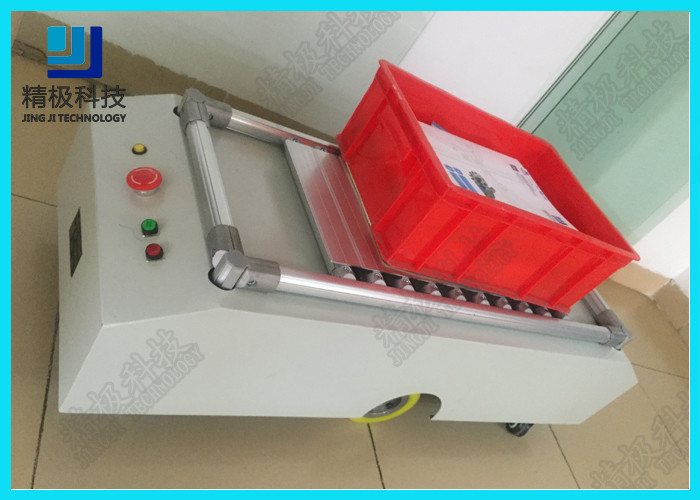

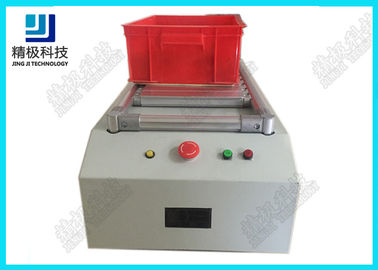

Magnetic Stripe Navigation Standard Single –Drive Two-Way Knapsack AGV JJ-2017.5.18
Description:
Operation Overview of the multi-station Knapsack type This Knapsack type of AGV can deliver material with Pallet Wheeled shelf,box,rolloing cylinder,and turnover box on its Top back ,or with a towed carrier,Through reading the position Mark,It can choose the stations automatically to stop ,with 300mm min,turning radius,and +-10mm braking accuracy.it is equipped With a sector scanning obstacle sensor and mechanical anti-collision Device.Multiple AGV can be combined together to be a flexible Production System,instead of the traditional assembly line
Walking Route Diagram of Knapsack AGV
Technical Parameters Specification
Product Name | Bi-directional AGV | Size | L110*W400*H300(mm) |
Model | JJ-2017.5.18 | Encode | JC017050001 |
Navigation Accuracy | ±20mm | Navigation Direction | magnetic stripe navigation |
Working mode | 24 hours | Running Direction | back and forth twin-row |
Gradeability | 3-5° | WLAN | WIFI network,RF network |
Stop precision | ±10mm | Drive Mode | Differential drive |
Charging mode | Manual charging | Drive Power | DC24V |
Safe detectable area | ≤3m ,adjustable | Carrying capacity | 50KG |
Alarm | Sound-light alarm | Ontology model | Ordinary type |
Accumulator | Lead batteries, lithium battery | Running Speed | 0-45m/min(customized) |
Design life | >10 years | Safety protection | Anterior barrier detection sensor protection |
Application of Knapsack AGV
Knapsack AGV Application
Knapsack AGV enable you to put trays racks ,boxes ,drums,turnover boxes and other goods on their bodies or pull vehicles a their
Tails ,Such AGV can realize intelligent stops by recognizing landmarks with the 300 mm minimum turning radius and +_10mm stop
Accuracy ,A double safety design is provided with a fan-shaps scanning sensor and a mechanical anti-collision device.When multiple
Sets of AGV are used,they form an assembly line to substitute for a traditional line.This realizes a flexible production system.
Our Company
Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.
