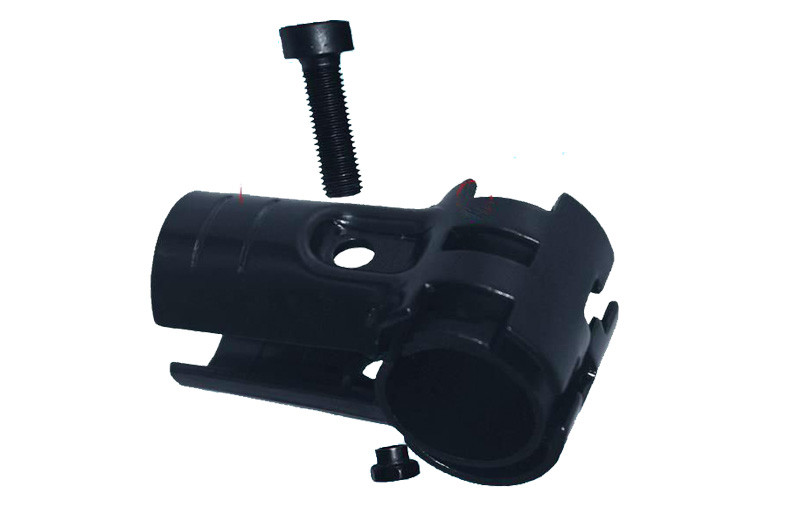

Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System

Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System

    • Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System
    • Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System
    • Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System
  • Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System

    جزئیات محصول:

    Place of Origin: Shenzhen ,China
    نام تجاری: Top-King
    گواهی: ISO9001:2008;RoHS
    Model Number: H-12

    پرداخت:

    Minimum Order Quantity: 500 set
    قیمت: Negotiation
    Packaging Details: 300 pieces packing together in a 300*250*152 mm carton
    Delivery Time: 5-7 working days with PO and deposit
    Payment Terms: TT
    Supply Ability: 10000 pieces per day
    اکنون تماس بگیرید
    توضیحات محصول جزئیات
    Material: 2.5mm Thickness SPCC Color: Black / Silvery
    Name: Tee Pipe fittings Usge: Tee type connecting for racking system
    Shape: pipe clamp Head code: round
    HS code: 7307990000 Weight: 62 g /pcs
    Package: 300 piece per carton Package carton size: 360mm*300mm*250mm
    Diameter: 28mm Combination: one piece H-12,one plastic ring and one piece H-1 fixed with one set M6*10 bolt&nut to be HJ-13

    Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System





    Pipe rack metal joints are suitable for all kinds of model and size racking system .Pipe rack joints  and plastic coated  pipe can resolve personal design plans and make the idea

    come true . For example: workbench, storage rack, Hand cart,production line etc.




    Features:


    1.Pipe joints and lean pipes fixed with bolts and nuts operation with a M6 spanner.

    Simple and easy operation
    2.Pipe rack products which assemble by pipe joints and ABS coated pipe without any welding part .

    Can be reused and dismantle easily.

    Can be random jointed with the pipe rack system.
    3. Can be installed roller track and pulley to realize the FIFO(first in first out) system.
    4. All of pipe rack products can be adjusted, thus it is convenient.
    5.Load capacity: 200-300kgs

    .



    * Production base:Shenzhen Jingji Co., Ltd



    * Model number: H-12



    * Brand name: JINGYU



    Term of Trade:  EXW / FOB / CIF



    1. Material:

     2.5mm Thickness SPCC steel

    2. Surface treatment :

    Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome

    plated(Silvery one)

    3.  production procedure:

    SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis

    Or Plating

    4. Main Combination:

    one piece of H-12 pipe joints,one piece H-1,one piece plastic ring and one set  of M6*25 bolt & nut can be assemble one set of

    metal pipe joint  HJ-10(H-12*1+H-1*1+M6*25*1)

    5.Weight

    62  g/ pcs

    6. Item No.

    H-12





    Product Description :



    1. Metal Pipe Joint Manufacturing standard:

    Using international materials production under strict Jingji quality control and inspection.

    Ensure the quality



    2. Pipe Joint Production process:

    Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC

     material. We emphasize on the functions of each product. Cutting corners in manufacturing

    process is not allowed.



    3. Design requirements:

    The standard is in accordance with the most favorable specification in the industry. Emphasizes

    on the safety of people, articles, and equipment prolong the service life.



    4. Testing:

    In addition to the regular standard gauge testing, a special gauge testing is added for every

    process to ensure the functional indices reach the standard.



    coated pipe joint for storage rack system|warehouse pipe joint for rack|metal joint for warehouse

    rack system



    Application of pipe joints and plastic coated pipes

    Black ABS Coated Metal Pipe Joints For Storage Rack / Warehouse Rack System



    pipes and joints system is both versatile and cost effective as all pipes and joints are reusable,enabling

    constructions to be easily reconfigured or products recycled to create equipment to suit different applications.
