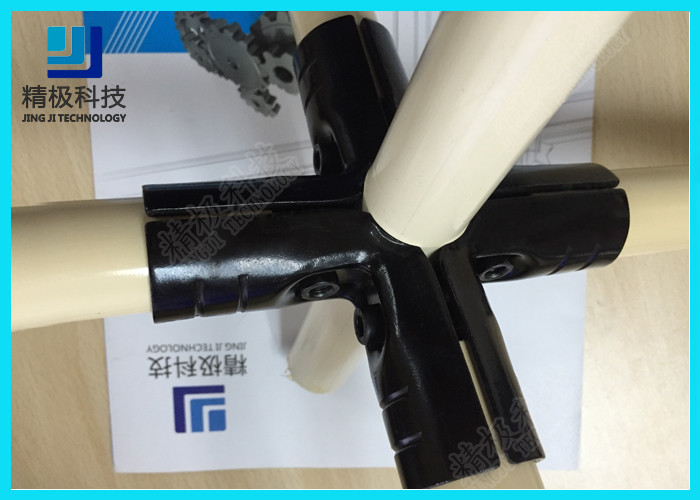

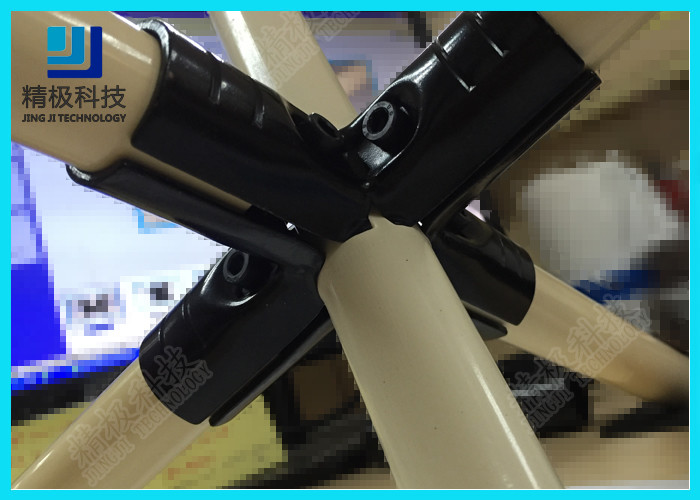

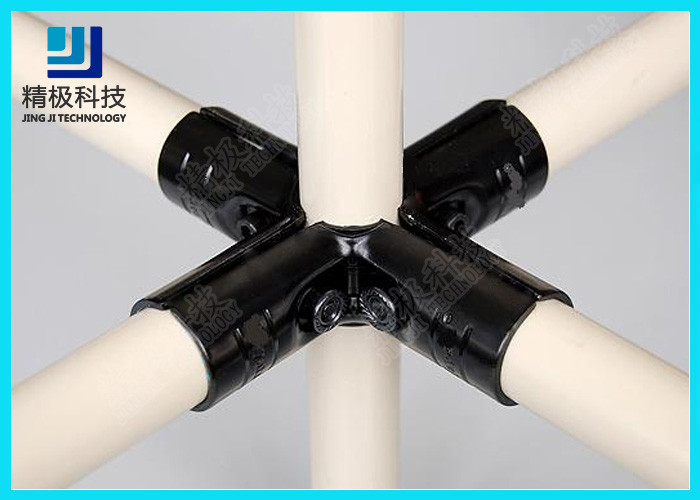

5-Way T Metal Joints Flexible Tubing fittng For Dia 28mm Pipe Joint System HJ-5

5-Way T Metal Joints Flexible Tubing fittng For Dia 28mm Pipe Joint System HJ-5


Description:

Metal joints and lean pipe can be combined into various flexible working tables, storage racks, revolving vehicles, etc., which can be easily disassembled, easy to assemble, and improve production efficiency.It is designed for the assembly, production, maintenance and operation of the factory.

The pipe Firtting with flexible structure, beautiful appearance, no pollution, can change the working environment, meet the requirements.The magic change, make it have extremely strong material processing ability.The value of resources is more valuable to show the value of reuse.In accordance with human mechanics, only one M6 inner hexagon can be used to complete the installation process.Can meet the transportation and storage of all kinds of delicate sensitive parts.

Combination:

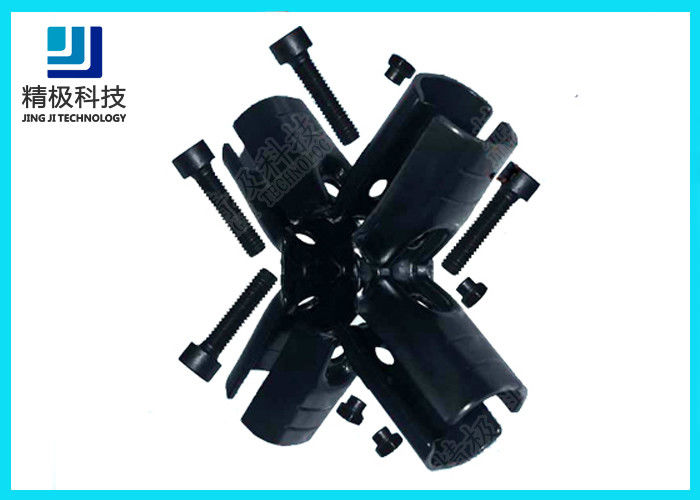

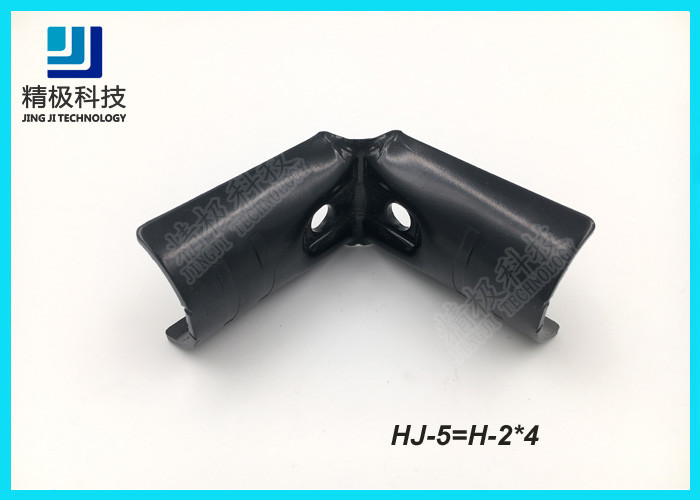

one HJ-4 is combine with 4 pcs of H-2 & 4 set of M6*25 nut and screw

The assembly and decomposition of bolts and nuts are free metal connections.Metal alloys are fixed and fixed forms of bolts and nuts. decomposition can be free,


Application:
production system, manufacturing equipment, material storage flow equipment, storage shelves, commercial display shelf, other application feasibility.

It adopts 23mm cold rolled sheet to be cut into strips and is made by stamping with many process,
then polishing the paint, or chrome plating, or the surface treatment of the electric surge.

Principle of assemble:

1. First the side with films after the install link rod

2. First the install link rod bearing rod With two ends before they are installed in the middle

3. All between chuck and can install according to design requirements in place to ensure that each clamp screw in place Can't use hard and chuck can hammer ,when holds pillar to ensure the perpendicular to the ground,  in order to avoid the wire rod rack uneven force causing damage

4. when cutting cladding can pay attention to the cutting deformation can artifacts may have special purposes.

Advantage:
1. The flexible pipe is composed of high-quality steel tube with high quality surface treatment.
2. The outer surface is composed of special plastic layer and inner surface coating.
3. The product has the advantages of beautiful appearance, wear-resisting, bright luster and pollution-free.
4. It is an ideal substitute for stainless steel products.
5. Surface special treatment without acute Angle, completely avoid causing the human body, accessories and accessories, and other items between the stabbing

Features:

1. Clean and durable.

2. Simple assemble and disassemble.

3. Easy to handle the products.

4. Unneccessary to equip speicial facilities.

5. High safety.

6.100% material (Thickness 23 mm ).

7. Eco friendly.

Why choose our products?
1) We are direct manufcture of pipe rack system, we produce all series of material for pipe rack system, such as metal joint, plastic joint, lean pipe, roller track, accessory for pipe rack system.
2) We produce this serises products metal pipe joint for more than 10 years, the earliesr factory to produce pipe rack system in Cina.

Our Company
Shenzhen Jingji Technology Co., Ltd.(TOP-KING HK LIMITED ) Is a professional manufactuer for design, production and sale of industrial storage equipment, flexible production equipment, automation equipment and other kinds of instruments and gauges. beside, the company distributes anti-static peripherals.
We provide a comprehensive logistics plan in order to avoid waste of resources in course of purchase and supply chain by manufactures. It is our ultimate goal to provide all customers with full service, to meet exact demands of customers. To improve product quality, and to enhance customer satisfaction storage annd logistics as in automation industy.We are the Direct Material Manufacturer and supplier of pipe and joint system, which is ergonomic and dynamic.
